Login sequence
(Under construction)

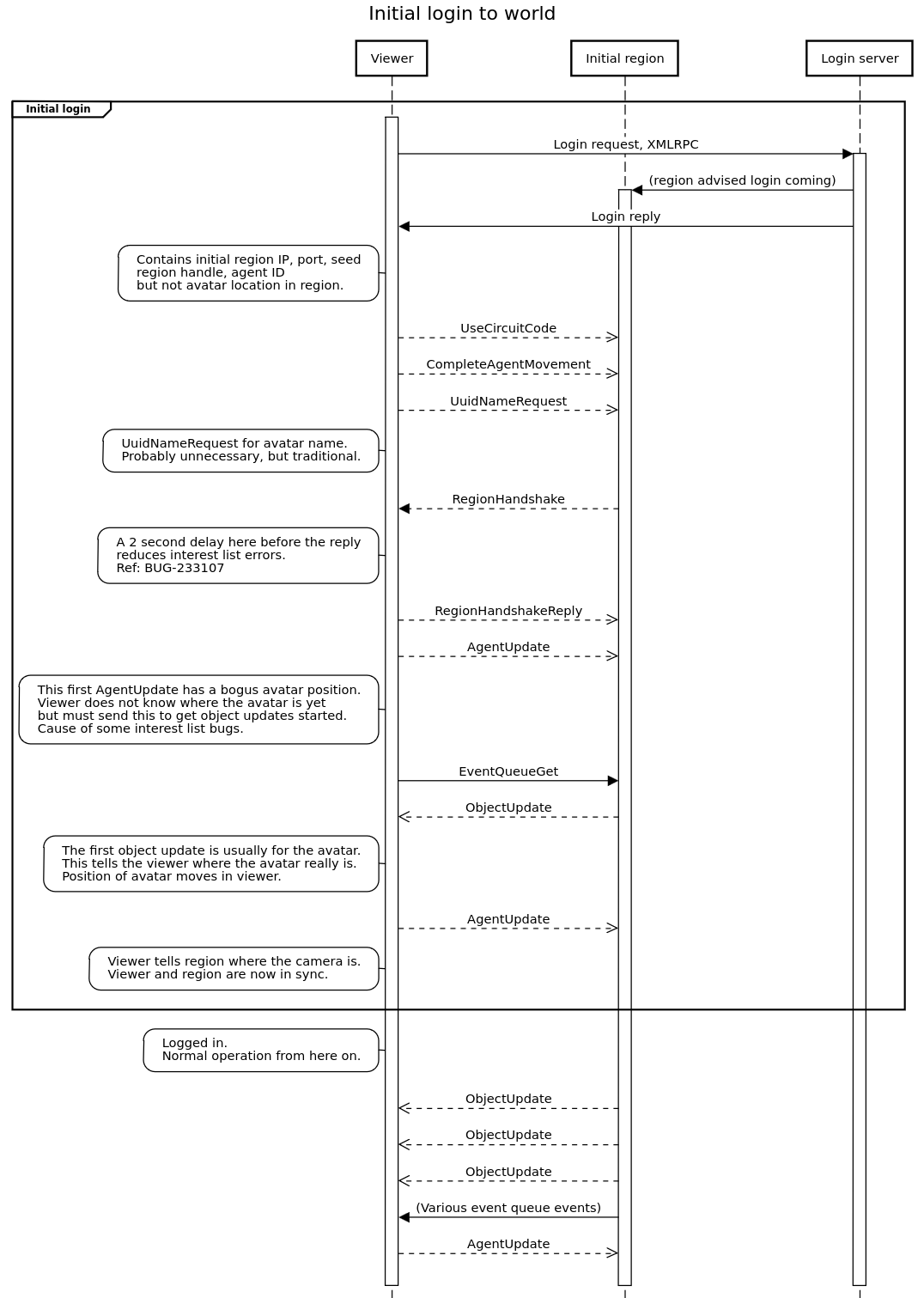

Event sequence diagram for login
Notes
==Source code for the diagram
Source code for the sequence diagram.
|
|---|
|
Source code for the sequence diagram above. To change the diagram, change this source code, then paste it into this free online chart generator [1] to generate a new .png image. Then replace the version of the image above with a new image. <source> title Initial login to world participant "Viewer" as V participant "Initial region" as R participant "Login server" as L group Initial login activate V V->L: Login request, XMLRPC activate L L->R: (region advised login coming) activate R L->V: Login reply rbox left of V: Contains initial region IP, port, seed\nregion handle, agent ID\nbut not avatar location in region. V-->>R: UseCircuitCode V-->>R: CompleteAgentMovement V-->>R: UuidNameRequest rbox left of V: UuidNameRequest for avatar name.\nProbably unnecessary, but traditional. R-->V: RegionHandshake rbox left of V: A 2 second delay here before the reply\nreduces interest list errors.\nRef: BUG-233107 V-->>R: RegionHandshakeReply V-->>R: AgentUpdate rbox left of V: This first AgentUpdate has a bogus avatar position.\nViewer does not know where the avatar is yet\nbut must send this to get object updates started.\nCause of some interest list bugs. V->R: EventQueueGet R-->>V: ObjectUpdate rbox left of V: The first object update is usually for the avatar.\nThis tells the viewer where the avatar really is.\nPosition of avatar moves in viewer. V-->>R: AgentUpdate rbox left of V: Viewer tells region where the camera is.\nViewer and region are now in sync. end rbox left of V: Logged in.\nNormal operation from here on. R-->>V: ObjectUpdate R-->>V: ObjectUpdate R-->>V: ObjectUpdate R->V: (Various event queue events) V-->>R: AgentUpdate </source> |
