Intro
I'm a hobbyist scripter.
Projects
LSL
Code Snippets
sRGB EOTF
Note that when converting a colour from regular LSL space (sRGB) to linear space for use in a light, it's likely quicker and cleaner to use the internal function llsRGB2Linear. This is mostly a function that can be used for fun to manipulate the gamma space of colours.
| LSL Portal | Functions | Events | Types | Operators | Constants | Flow Control | Script Library | Categorized Library | Tutorials |
Summary
Function: vector srgb_eotf( vector color, float gamma );
Converts a gamma-encoded color value to linear space. Useful when dealing with lights (as these expect a non-gamma-encoded color).
Returns a vector
| • vector | color | |||
| • float | gamma |
Specification
vector srgb_eotf(vector color, float gamma) //To convert from regular LSL colour to light colour, gamma value should be 2.4
{ //Conversion from gamma-encoded sRGB space to linear space. Credit: Quinn Elara, Christopher J. Howard
vector low = color / 12.92;
vector high = <llPow((color.x + 0.055)/1.055,gamma), llPow((color.y + 0.055)/1.055, gamma), llPow((color.z + 0.055)/1.055, gamma)>;
return mix(low, high, step(<0.04045,0.04045,0.04045>, color));
}
float max(float x, float y)
{ //Return the higher of 2 given values.
if( y > x ) return y;
return x;
}
vector mix(vector x, vector y, vector t)
{
vector ret;
ret.x = x.x*(1-t.x) + y.x*t.x;
ret.y = x.y*(1-t.y) + y.y*t.y;
ret.z = x.z*(1-t.z) + y.z*t.z;
return ret;
}
vector step(vector edge, vector x)
{
vector ret = <1,1,1>;
if(x.x < edge.x) ret.x = 0;
if(x.y < edge.y) ret.x = 0;
if(x.z < edge.z) ret.x = 0;
return ret;
}
Examples
vector LampCol = <1,0.74510,0.47451>; //3200 kelvin
llSetLinkPrimitiveParamsFast(LINK_THIS,[PRIM_POINT_LIGHT,1,srgb_eotf(LampCol,2.4),1,20,0,PRIM_GLOW,ALL_SIDES,1,PRIM_COLOR,ALL_SIDES,LampCol,1,PRIM_FULLBRIGHT,ALL_SIDES,1]);
//Set light source colour and prim colour to same colour; despite taking different input values.
Random Notes
I be a placeholder. At least for now.
Quinn's Camera Settings
Archive of my current viewer camera position, because I forget a lot.
| Quinn Elara's Camera Settings | |
|---|---|
| Debug Setting | Value |
| CameraOffsetRearView | X: -1.286 Y: -0.613 Z: -0.628 |
| FocusOffsetRearView | X: 0.0 Y: -0.613 Z: 0.418 |
| RenderUseFarClip | FALSE |
Editor note: All sections below this box are considered drafts, and may move, change name, or be deleted at any time.
Photo Checklist Page Update
This is some text. I need to do something here.
Viewer Setup
Lens Settings
The table below contains settings for simulating various real-life lenses within Second Life. These settings will change the camera's Field of View (FoV), as well as Depth of field (DoF) settings. You may want to play around with some of these settings (for example, the Aperture value) to manipulate the depth-of-field effect.
 |
Tip: The default Second Life camera is roughly equivalent to a full frame digital (36x24mm sensor) camera using 31mm lens. |
For reference, the following table describes the debug settings changed, their units, and what the setting does. Default values are not provided as these settings may vary between viewers.
| Debug Setting | Units | Description |
|---|---|---|
| CameraAngle | Radians | Camera Field-of-View angle, horizontal. Equivalent to Angle of View - width degrees to equate a real lens. This changes the visible FoV. |
| CameraDoFResScale | Linear | Amount to scale down resolution of DoF effect. Manipulating this value may change performance. |
| CameraFieldOfView | Degrees | Field-of-View angle used for the DoF effect. Note that this value is the height FoV, NOT width. |
| CameraFNumber | F Stop | F Stop (or Aperture) value to be simulated by DoF effect. This is the value you should change to adjust the intensity of the DoF effect. |
| CameraFocalLength | mm | Focal length of the lens to be simulated by the DoF effect. |
| CameraMaxCoF | mm*1000 | Lens Circle of Confusion value to be simulated by the DoF effect. |
| CameraFocusTransitionTime | Seconds | Time the camera will take to transition between 2 focal planes. |
Editor note: The below settings assume that the screen is in the 16:9 aspect ratio - These values vary depending on aspect ratio, so if you have a screen of a different ratio, you may need to recalculate these values.
 |
Note: To manipulate the intensity of the Depth-of-Field effect, change the aperture (F number) value. Common values are: 1.4, 2, 2.8, 4, 8, 12, 16, 20, 24 |
| 8 mm (Fisheye) | |
|---|---|
| Debug Setting | Value |
| CameraAngle | 2.306 |
| CameraFieldOfView | 103.4 |
| CameraFocalLength | 8 |
| CameraMaxCoF | 29.0 |
| 16 mm | |
|---|---|
| Debug Setting | Value |
| CameraAngle | 1.688 |
| CameraFieldOfView | 64.65 |
| CameraFocalLength | 16 |
| CameraMaxCoF | 29.0 |
| 24 mm | |
|---|---|
| Debug Setting | Value |
| CameraAngle | 1.287 |
| CameraFieldOfView | 45.75 |
| CameraFocalLength | 24 |
| CameraMaxCoF | 29.0 |
| 31 mm (SL Default) | |
|---|---|
| Debug Setting | Value |
| CameraAngle | 1.047 |
| CameraFieldOfView | 35.98 |
| CameraFocalLength | 31 |
| CameraMaxCoF | 29.0 |
| 50 mm | |
|---|---|
| Debug Setting | Value |
| CameraAngle | 0.691 |
| CameraFieldOfView | 22.9 |
| CameraFocalLength | 50 |
| CameraMaxCoF | 29.0 |
| 75 mm | |
|---|---|
| Debug Setting | Value |
| CameraAngle | 0.471 |
| CameraFieldOfView | 15.38 |
| CameraFocalLength | 75 |
| CameraMaxCoF | 29.0 |
| 100 mm | |
|---|---|
| Debug Setting | Value |
| CameraAngle | 0.350 |
| CameraFieldOfView | 11.56 |
| CameraFocalLength | 100 |
| CameraMaxCoF | 29.0 |
 |
Did you know that you can leave DoF enabled for daily use? Try the settings given above for 31 mm, with an F-Stop (F number) value of 16.0. |
How to calculate lens settings
If you don't have a 16:9 aspect ratio monitor, you will want to recalculate the lens settings.
To recalculate the lens settings:
- Visit this website: [1]
- Enter the desired focal length of the lens.
- The desired focal length is also one of the settings we need. (Debug setting: CameraFocalLength)
- Scroll down, and select Option 1.
- Advanced users: You may also want to change the sensor size if you are trying to match footage shot with a specific camera (e.g. a phone camera). See the following website to get some additional values: Sensor chart
- Under Option 1, select the desired Aspect Ratio crop.
- Click Recalculate.
- Find the value for "Angle of View - Height Degrees".
- The value in this field is the new value for the DoF FoV (Debug setting: CameraFieldOfView)
- Visit this website in a new tab or window: [2]
- Enter the value from the first website called "Angle of View - Width Degrees" in the "deg" field of the second website.
- The value given in the "rad" field is the new value for your FoV (Debug setting: CameraAngle).
Tilt-Shift effect
Tilt-shift photography is popularly used for simulating miniature scenes. Try these settings:
A tilt shift lens differs from a conventional lens as the size of the projected image circle is much larger than the sensor it has to cover, whereas a conventional lens will usually only just cover the size of the sensor itself.
In Second Life, you can simulate a tilt-shift lens by manipulating the CameraFieldOfView debug setting. This setting essentially controls the size of the simulated image circle,
Try the below settings - these use a 4* modifier to the CameraFieldOfView value.
| 31 mm (Tilt shift) | |
|---|---|
| Debug Setting | Value |
| CameraAngle | 1.287 |
| CameraFieldOfView | 143.92 |
| CameraFocalLength | 31 |
| CameraMaxCoF | 29.0 |
As always, you can manipulate the blur level of the effect by changing the aperture (CameraFNumber).
You can also use a different modifier value to reduce the level of the effect. In the below table, you can see how the modifier is applied between 1* and 4*
| Tilt-shift modifiers (31mm) | |
|---|---|
| Multiplier | CameraFieldOfView value |
| 1* (Conventional lens) | 35.98 |
| 2* | 71.96 |
| 3* | 107.94 |
| 4* | 143.92 |
Glow
In Second Life, objects have a separate glow parameter. This can be used to create the visual effect of something being self-luminant (i.e. a light source), but can also be used to add a realistic bloom effect to areas on shiny objects (i.e. hotspots).
| Quinn Elara's Glow Settings | |
|---|---|
| Debug Setting | Value |
| RenderGlow | TRUE |
| RenderGlowIterations | 3 |
| RenderGlowLumWeights | X: 0.3 Y: 0.6 Z: 0.1 |
| RenderGlowMaxExtractAlpha | 0.04 |
| RenderGlowMinLuminance | 1 |
| RenderGlowResolutionPow | 10 |
| RenderGlowStrength | 0.330 |
| RenderGlowWarmthAmount | 0.25 |
| RenderGlowWarmthWeights | X: 1 Y: 0.5 Z: 0.7 |
| RenderGlowWidth | 1.3 |
Scene Setup
Lighting
|
Tip: The Second Life Knowledge Base has a great article explaining the core basics around Second Life's lighting system, albeit a little outdated. See here |
Lighting in Second Life is just as important as your framing for your scene - it governs everything that you see; as it does in real life.
Second Life has 4 types of light:
- Ambient light - this is the light which is applied across the entire scene, and does not cast shadows.
- Sun / Moon light - this is the light that is emitted from the sun or moon, when present. This does cast shadows.
- Point lights - this is the default type of light that Second Life uses. It acts similarly to a lightbulb, wherein light is cast out in all directions.
- Projector lights - these lights will emit light in a specific beam pattern, for example, a car headlamp or a flashlight.
General tips
- The white point (
<255,255,255>) of color in Second Life is actually a "cool white" (equivalent to6504kelvin), following a specification called CIE Illuminant D65. - When lighting a dark or night scene, instead of using dim 'white' lights, you should instead use lights with a blue cast (Approx.
~9000(TODO: Double check this value) kelvin). This is simulating a phenomenon in the human eye, wherein perceived color gains a blue shift before losing color vision altogether. This is known as the Purkinje effect.
Environment preset
In Second Life, lighting starts with the choice of your Environment preset, introduced as part of EEP. By default, the viewer uses whichever preset the landowner has decided to use on their parcel.
Your selection of Environment Preset governs 2 types of light that are present in Second Life - Ambient and Sun / Moon light.
- Ambient light can be changed via the Environment Editor > Atmosphere & Lighting > Ambient Color. Note that Ambient light is also attenuated by the Cloud coverage (Environment Editor > Clouds > Cloud Coverage) value - the higher the coverage, the more ambient light there is.
- Sun / Moon light can be changed via the Environment Editor > Sun & Moon > Color.
|
Tip: While many people play with 'flat' environment presets (e.g. CalWL), these often make for poor photography lighting. Avoid using these where possible, instead, try making use of specific photography presets for your shoots. |
 |
Warning: When selecting presets, endeavour to use EEP-specific (i.e. not converted from the prior WindLight system) presets, as older presets would have undergone a conversion into the new EEP Settings asset, which is not a perfect conversion. |
In-world lighting
Another thing to consider is placing lights in-world. Any object in-world can be made into either a point or projector light (via the Build floater > Features > Light).
In a studio setting, it's recommended to use projector lamps wherever possible to keep tight control of the lighting in your scene. It also matches real-life photography lamps, most of which are actually different forms of projector lamps.
The below example makes use of basic 3 point lighting on a plain background.
-

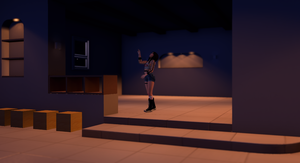

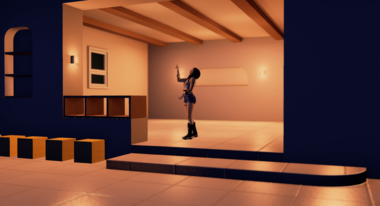

Lit with point lights only - Lit with projector lights only
- Viewer: Alchemy Project AgileAkita (6.5.5.1529)
- Pose: loel - spring serenade 05
- Environment Preset: Studio Saberhagen - Studio Dark (P)
- Lens: 75mm
- Advanced Lighting Model: Enabled
- Depth-of-Field: Enabled, Aperture 2.0
- Tonemapper: Uncharted, Exposure 2.4
- LUT: LUT Test33 v44.cube
General
Viewer-Specific

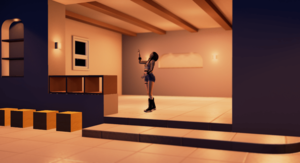

Hovever, a mixture of Point and Projector lamps is generally the best way to light most scenes.
- Viewer: Alchemy Project AgileAkita (6.5.5.1529)
- Pose: loel - spring serenade 05 - TODO: Add link to vendor
- Environment Preset: Studio Saberhagen - Studio Dark (P) - TODO: Add MP link to photo presets, when available.
- Lens: 75mm
- Advanced Lighting Model: Enabled
- Shadows: Disabled
- Depth-of-Field: Enabled, Aperture 1.4
- Tonemapper: Uchimura, Exposure 1.0
- LUT: LUT Test33 v44.cube
- None.
General
Viewer-Specific
Post-Processing
Chroma Key
If you're taking photos which you intend to remove the background on, you may wish to use a Green or a Blue screen. This makes use of a technique called Chroma Keying, and is used by many photographers and videographers alike to provide fast and easy background removal.
For reference, the 4 industry-standard colors used for chroma keys are as follows:
| Standard Chroma Keys | |||
|---|---|---|---|
| <0,177,64> | <0,71,187> | <0,255,0> | <0,0,255> |
| Chroma Green | Chroma Blue | Digital Green | Digital Blue |
Of the above, it is much more common to see the "Chroma" colors than the "Digital" ones, so it is recommended to try setting up with one of the "Chroma" colors first. (If the key fails, go back and try one of the "Digital" colors).
|
Tip: When setting up your keying surface, always enable Full-Bright to make sure that the color is consistent across the entire surface, and that it is not affected by your scene lighting. |
|
Warning: When setting up a shot for chroma keying, make sure to disable Depth of field to avoid any loss of definition around the edges of your subject. |
EEP
 |
Important: The below section is speculative, and may change frequently. It is mostly based on observations. |
Clouds
Texture:
- It seems that the 3 colour channels are all evaluated, but it is unclear how each is used.
- It is possible that the colour channels are used to store multiple cloud maps, meaning you can store a different cloud map in each channel to simulate changing weather (Clear > Light clouds > Heavy clouds)
Settings:
- Cloud Variance seems to be a focus modifier, however causes the map to distort a lot, resulting in poor looking clouds. Best left at 0.5.
- Cloud Scroll controls the (rolling) transform applied to the Cloud Density map.
- Cloud Density is the base cloud map - It contains very little detail, but will control where clouds are placed and how they move. X and Y will vary the size and frequency, D is a density modifier (Higher = heavier / thicker clouds).
- Cloud Detail will add texture to the cloud density map. X and Y are basic transform controls, and D seems to attenuate the blend amount.
PBR
|
Tip: For normal daylight scenes (excluding sunrise / sunset), you generally want to achieve an average (in-world) sky color of approximately <159,177,215> (#9fb1d7). Darker shades of the same color also work well. Shade calculator |
Atmosphere & Lighting
- Blue Horizon is recommended to be a greyscale color. This is because Blue Horizon is the primary contribution color of "sheen", seen on PBR Materials and some Blinn-Phong materials.
- Careful tuning of Blue Density is needed to make sure the sky is still a shade of blue. The most tinting effect is achieved at around Lum (Luminance) 50.
- Haze Horizon seems to work as a mixing ratio between Blue Horizon and Blue Density. 0.25 is often a good starting value.
- Haze Density should be set to a value of 1.0 or above, as values below 1 will cause the horizon to glow and causes the viewer's auto-exposure to overcompensate.
- Reflection Probe Ambiance generally should be set to 1.0 for PBR presets - While you can set this to a higher value, you may experience issues with scene exposure. (Manually placed reflection probes with a higher ambiance value is recommended to light interiors with sunlight)
Sun & Moon
- Glow Focus is recommended to be in the region of 0.10 to 0.30. Lower values than this may cause the horizon to glow, thus causing the viewer's auto-exposure to overcompensate.
